### Comprehensive Guide to Sobel Edge Detection with Examples

• • 0

Edge detection is a critical operation in image processing, it is used to identify boundaries between the objects or regions in an image. In this article we are going to discuss about the Sobel Edge Detection method.

## What is Sobel Edge Detection?

Sobel Edge Detection is a first-order derivative edge detection method that was developed by Irwin Sobel in 1968. It is based on the concept of finding the gradient of the intensity of the image, and it is commonly used due to its simplicity and efficiency

The Sobel Edge Detection method calculates the gradient of the intensity of the image using the Sobel operator, which is a 3×3 kernel. The Sobel operator calculates the gradient in both the x and y directions, and the gradient magnitude can be calculated by combining these two gradients.

## The Sobel Edge Detection method consists of the following stages:

1 – Gaussian Blur: The input image is smoothed using a Gaussian filter to remove noise.

2 – Gradient Calculation: The gradient of the intensity of the image is calculated using the Sobel operator.

3 – Thresholding: The gradient magnitude is thresholded to keep only the strong edges and remove weak edges.

The result of the Sobel Edge Detection method is a binary image where the edges are represented by white pixels, and the background is represented by black pixels.

## Example of Sobel Edge Detection in Python and OpenCV:

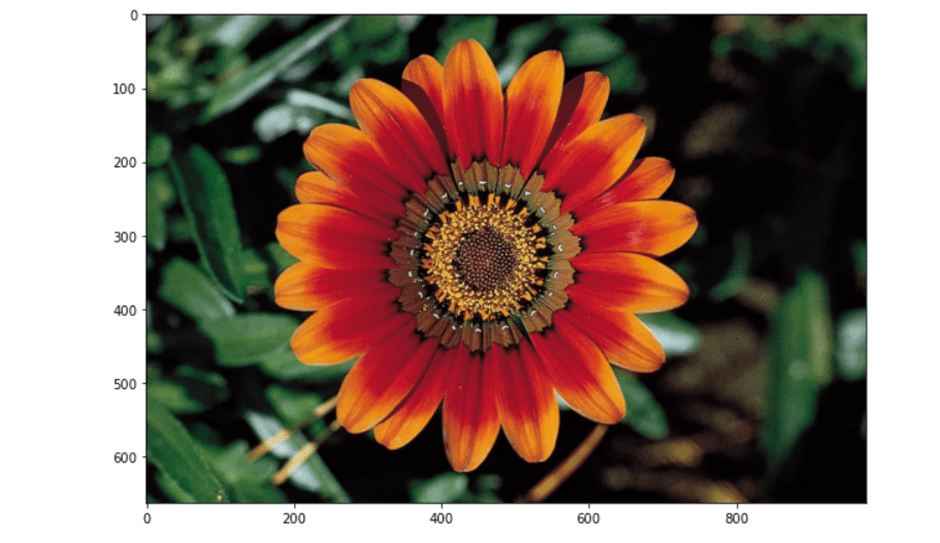

In this example, the input image is first smoothed using a Gaussian filter to remove noise. Then, the Sobel Edge Detection method is applied to the smoothed image, and the gradient magnitude is calculated by combining the x and y gradients. Finally, the result is displayed using the imshow function from the matplotlib library.

## Conclusion

Sobel Edge Detection is a popular edge detection method that is based on the concept of finding the gradient of the intensity of the image. It is simple, efficient, and widely used in image processing applications, including object recognition, image segmentation, and pattern recognition. The Sobel Edge Detection method can be easily implemented using the OpenCV library, and it provides accurate and efficient edge detection results.
